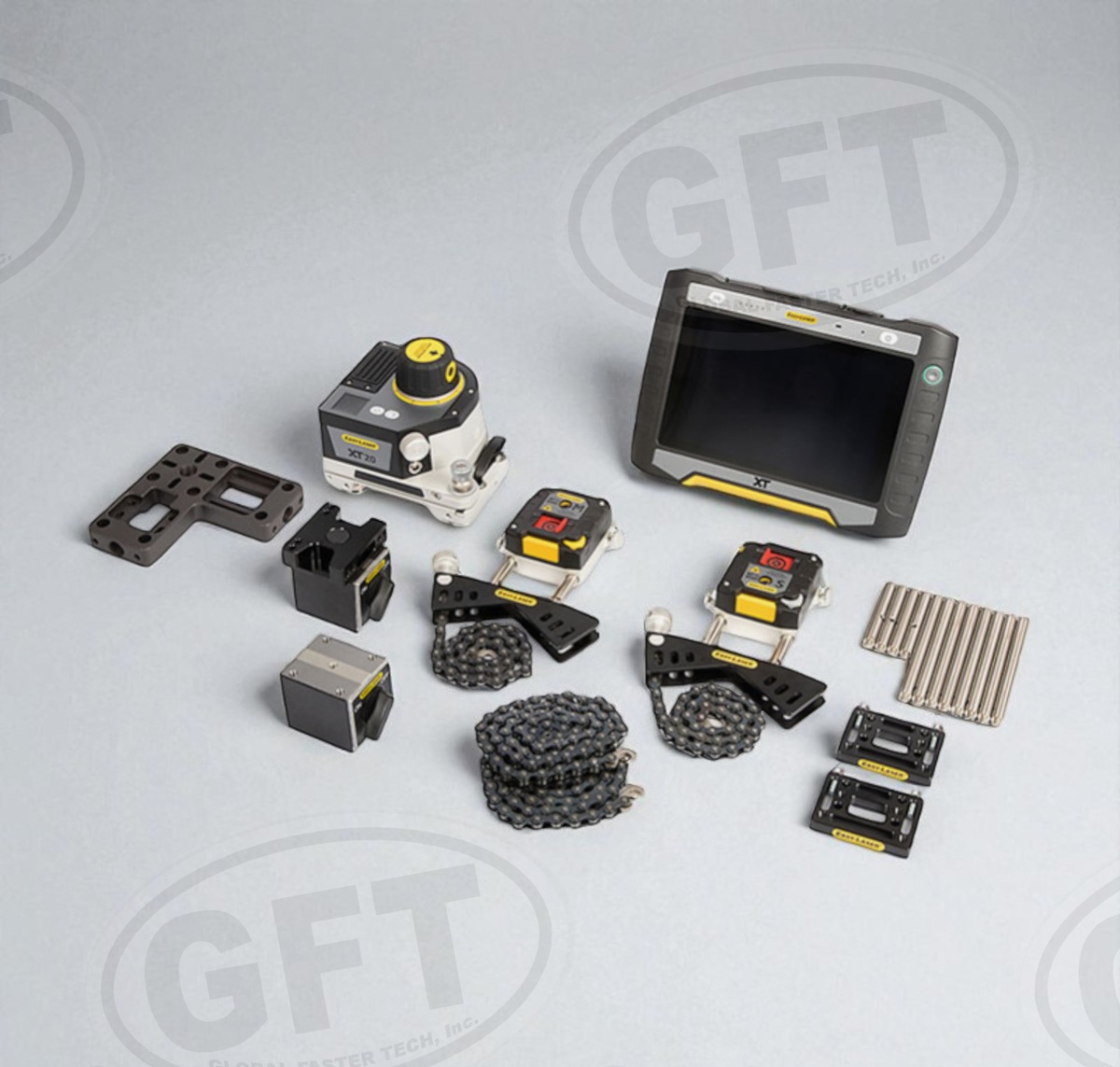

Easy-Laser XT770 Laser Alignment System in the Generation XT series, offering exceptional power and versatility for precision shaft alignment. It provides the flexibility to display alignment data on a range of handheld devices such as tablets and smartphones, including our own Easy-Laser XT ergonomic and rugged, IP66/67-approved shockproof alignment computer, which features a built-in 13MP camera for documentation and HDMI video output.

Features

360° Live – Adjust in vertical and horizontal directions at the same time with lasers in any position.
Dual Beam, 2 axis dot laser system for longer spans and complex measurements.
Programs for Machine trains (unlimited) and Cardan/Offset Shafts
Measure Straightness, Flatness, Squareness and Parallelity
Multi-Point, Continuous & Uncoupled Sweep measurement methods
EasyTrend function for live thermal expansion monitoring
Digital Belt Alignment Tool Integration XT190
Vibrometer Tool Integration XT280
Built-in Thermal and Digital Camera on XT12 Display
The free XT Alignment app runs on Android and iOS devices with all functions included.
Measurement Range up to 20m
Shaft Diameters up to 250mm and with extension chains up to 450mm.

Advanced Measurement Capabilities

The Easy-LaserXT770 shaft alignment tool measuring units utilize dual beam dot-type laser technology with 2-axis square PSD surfaces making it possible to measure larger machine spans and the most advanced alignment applications. As with all Easy-Laser XT alignment tools, perform your standard shaft alignments with precision but now, add any number of machines to your train with the new Machine Train (multi-coupling) program.

For larger or more critical machines, like turbines for instance, use measurement methods like Multipoint and Continuous Sweep, or the new EasyTrend program which will give you live monitoring of your machine’s thermal growth – perfect for an offline-to-running measurement application! The new 360° Live adjustment function permits adjustment of your machine both vertically and horizontally at the same time, with measuring units in any position!

User-Friendly with Comprehensive Documentation

This huge touchscreen display is glove friendly and works just like your phone or tablet. Its tap and go right at you finger tips. The intuitive user interface guides your through the measurement process. Use the rugged Easy-Laser XT11 display unit with your XT770 shaft alignment tool, or install the free Easy-Laser Generation XT laser alignment app on your iOS or Android device. You are not locked-in to a specific way of working. With the app there are no license hassles either, only free updates!

Finish each laser alignment with an automatic report on your measurements results. You can type in any comments into the Notes section and easily create a PDF report containing all measurement data. Or why not share it (email) right from the display?
