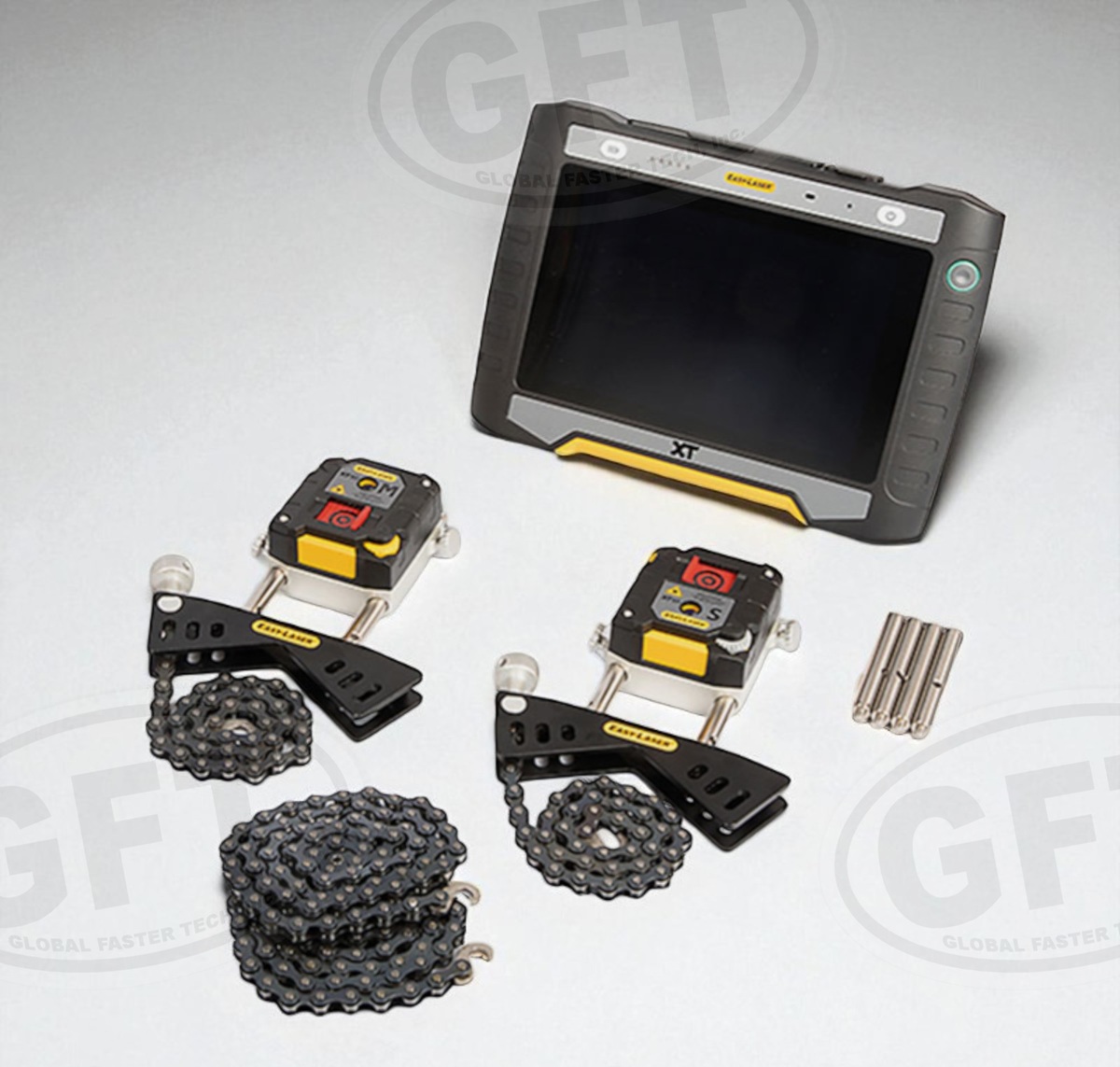

Easy-Laser XT660 Laser Shaft Alignment

Easy-Laser XT660 Laser Shaft Alignment

Easy-Laser XT660 Laser Shaft Alignment allows you to display alignment data on different handheld devices such as tablets and smartphones, including our own Easy-Laser XT ergonomic and rugged, IP66/67-approved shockproof alignment computer, which includes a built-in 13MP camera for documentation and HDMI vidUser-friendly

Features

Dual Beam, 1 axis dot laser system for longer spans and complex measurements
Machine Train with 3 machines/2 couplings
Measure Base twist
Multi-Point and Continuous Sweep measurement methods
Digital Belt Alignment Tool XT190 Integration
Vibrometer Tool, XT280, Integration
Built-in Thermal and Digital Camera on XT12 display
The free XT Alignment app runs on Android and iOS devices with all functions included.
Measurement Range up to 20m
Shaft Diameters up to 250mm and with extension chains up to 450mm.

With XT660 you can carry out the following:

align the machine
check base twist
check bearing play
check soft foot
document and share the results

More Measurement Capabilities

The Easy-Laser XT660 laser alignment measuring units utilize dot laser technology. This makes it possible to measure larger machine spans than the line laser tools. Perform precision shaft to shaft alignments (horizontal and vertical machines) up to 20 meters (66 feet)! New laser alignment measurement methods like Multipoint and Continuous Sweep gives you options for any alignment application, not to mention it provides higher accuracy & repeatability when backlash is present from gearboxes or couplings. The Easy-Laser XT660 shaft alignment tool also allows you to check more things when installing a machine, e.g. twist of foundation, bearing clearance and machine stress.

User-friendly

Use the rugged Easy-Laser XT display unit, or install the free XT Alignment app on your iOS or Android device. The intuitive user interface guides you through the measurement process. Click here for list of compatible devices

Unique documentation possibilities

The XT display unit has a 13MP camera. You can also get the XT display unit with a built-in IR camera. This means you can add a thermal image of the machine before and after alignment. You can easily create and share a PDF report containing all measurement data and images.
